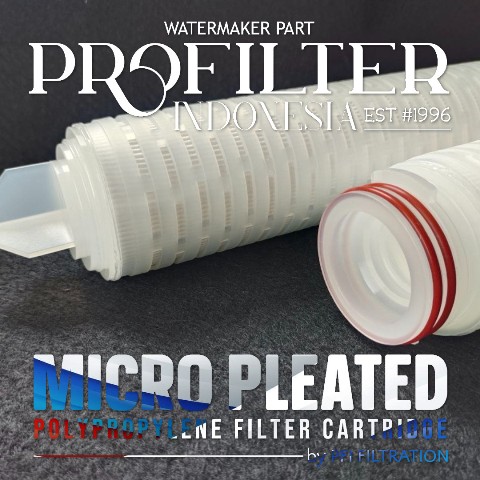

Pleated Filter Cartridge 30 inch

Kami adalah importir distributor agen dan supplier Micro Pleated Filter Cartridge 30 inch 0.1 Micron Polypropylene terlengkap menyediakan berbagai kebutuhan spare part filter untuk keperluan industry dengan kualitas dan harga terbaik.

PFI Filtration pleated filter cartridges are one of our most popular solutions for achieving exceptional filtration performance in Industrial, Life Sciences and Water applications.

Overview Micro Pleated Filter Cartridge Polypropylene

The pleated depth media is encapsulated in an integral, continuous-length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness. Commonly used in food/beverage and chemical applications as a final filter or prefiltration stage.

Profilter Indonesia Filter polypropylene pleated cartridges’ filter media provides a high area, 100% polypropylene element for removal of fine or coarse particulate from fluid streams. The pleated depth media is encapsulated in an integral, continuous length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Moreover it is offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations.

Specification

Construction Materials

Filtration Media: Polypropylene
Support Media: Polypropylene
End Caps: Polypropylene
Center Core: Polypropylene
Outer Support Cage: Polypropylene
O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone

Operating Conditions

Change Out ΔP (recommended) 35 PSID
Temperature (max) 176^oF (80^oC)
Differential Pressure (max) 60 PSID (4.1 bar) at 68^o˚F (20^oC)

Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized

Sanitization/Sterilization

Filtered Hot Water: 80^oC for 30 min.
Steam Sterilization: 121 ̊C for 30 min., multiple cycles
Chemicals: Cartridges are compatible with most chemical sanitizing agents.

Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized.

Dimensions

Length: 10 to 40 inches ( 25.4 to 101.6 cm)
Outside Diameter: 2.70 inches
Micron size: 0,2 µm until 10 µm

Applications

Food & Beverage
Deionized Water
O. Pre-Filtration
Process Water
Fine Chemicals
Plating Chemicals
Wastewater
Pharmaceutical Prefiltration

Untuk informasi lebih lanjut perihal produk dan penawaran harga Micro Pleated Filter Cartridge 30 inch 0.1 Micron Polypropylene silahkan hubungi CS kantor kami.
